Interface/Skin Design tutorial in photoshop

[ 作者来源:Pixeltool 编辑整理:PhotoShop资源网 更新时间: 2006-08-03 录入: 黄叶飞扬 ]



I'm going to show you all the way I've do the applications interfaces or "skins" using Photoshop. Remember, you can change the methods and values that I use here, working in your own style. You can find the styles for PS 7.0 that I used for this here. Just click and with the rigth button of your mouse, choose "save target as..."

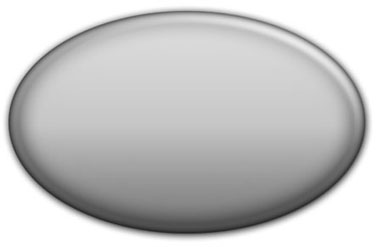

按此在新窗口浏览图片 1. The Base

With a new file in blank, make a new layer and in this, create an oval and fill it with black. Center it, and add the soft metal style.

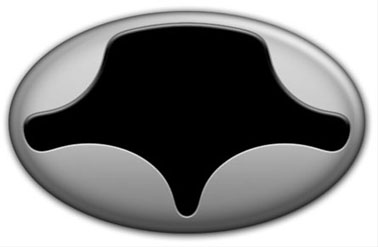

按此在新窗口浏览图片 2. Internal shape

Make a selection of the oval, reduce it 15 pts.
Now take out some parts, making the image more interesting. Copy the entire layer, and paste this into a new alpha layer.

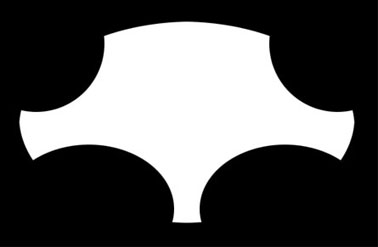

按此在新窗口浏览图片 3. Blur

In the alpha layer, apply a gaussian blur of 15 px

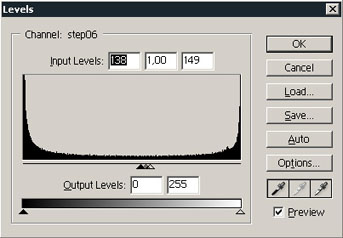

按此在新窗口浏览图片 4. Levels

Then hit Ctrl+L, and in the levels box, use the settings I show here in the image. Copy the alpha channel, and paste the image into a new layer ( standard layer).

按此在新窗口浏览图片 5. Round corners

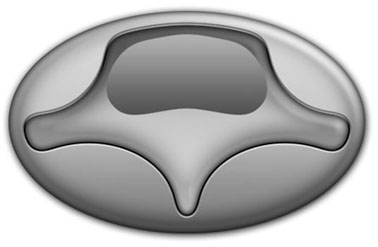

The trick with the alpha results in an image with some rounded corners, very nice and with this style, better! Well, we need to select the shape again (Ctrl + mouse click) contract the selection a bit and create a new shape in a new layer.

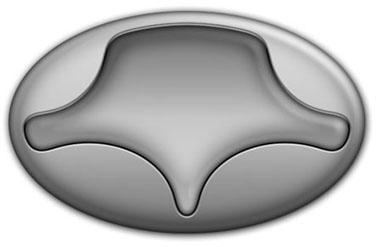

按此在新窗口浏览图片 6. New shape

In the new layer, we need to fill the selection and apply the same style of the "base" but only changing the direction of the gradient fill to inverse. This change increases the effect of bevel here.

按此在新窗口浏览图片 7. Screen

Now, in a new layer we draw a shape for our screen and make it more rounded using the "alpha trick". Again, I fill this one with a gradient, inverse to make more effect.

按此在新窗口浏览图片 8. Color screen

One more layer to create the screen: A gradient (I like this green tones) and an inner shadow. I've added here some little lines to give the "scan effect".

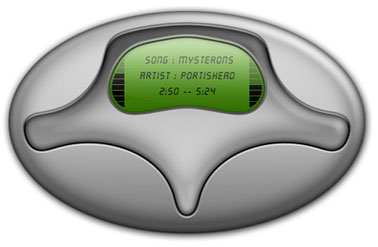

按此在新窗口浏览图片 9. Screen details

And the rest of the screen details: The text, some lines for the volume and equalizer... Whatever you want.
We are almost done...

按此在新窗口浏览图片 10. Details

Well... Now, the rest are add some details like buttons, screws and stuff like that... And of course, a logo if you want. Remember the use of the "alpha trick" and the styles that give the cool final effects.

Remember to practice and take some time for experiment. At this time, my "interfaces" are just plain images, if you want to use it to create some "skin" or something please let me know. For see more of my artworks, visit pixeltool.com.ve or If you wanna send me a word, do it here.
